Gold is where you find it! We have recognized the need to build a
machine that is compact enough to travel, tough and reliable
enough to be considered a production machine & easy to maintain!
FOB Tracy, MN USA

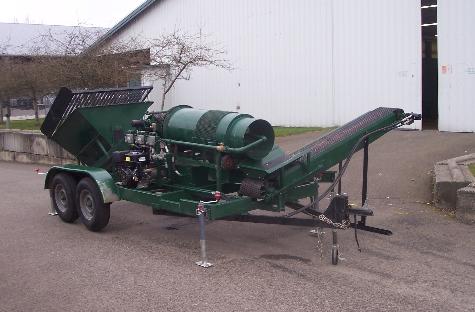

The "Oregon Pioneer" is the only small production, flexible discharge, hydraulic machine on the market. It is easily
portable and was designed and manufactured for a small production or pilot processing operation, particularly for
the gold mining industry. The sluice and discharge conveyor are independently interchangeable, allowing either
or both discharges to be placed on either side of the machine. This facilitates an easy set up in only a matter of
minutes with this truly portable production machine.
If you are an independent or small scale operation, this is an ideal solution for your production needs. If you have
scaled up operations, the "Oregon Pioneer" is also an ideal machine for use as a pilot plant for testing prior to
applying for time consuming permits and moving larger equipment onto a prospective property. With an estimated
production of 8-15 yards per hour, the Oregon Pioneer could be the answer to your mining needs!
Oregon Pioneer Specifications
- 13HP OHC w/ Electric Start Engine w/ Single Hydraulic Pump
- 15 gallon Reservoir
- 8' Discharge Conveyor
- 6' Feed Conveyor w/ Self Cleaning Return
- 2" Spacing on Hopper Grizzly
- 48" x 20" Trommel Drum
- 3 Flow Controls (Trommel, Feed & Discharge)
- Sealed Centric Locking Pillow Block Bearings
- 4 Stabilizing Jacks
- High Tensile Trommel Screen w/ 3/8" openings
- DOT Approved Trailer Lights
- Adjustable Tongue Height
- Supply Quick Disconnect
- Clean up Water Supply Connect w/ Valve
- Tandem Axle w/ 205/75/D14 Tires
- Easy Lube Axle w/ Joined Equalizers
OPTIONS
Replacement Screens
Electric Brakes
Water Supply Pump & Hose
Spare Parts Package
Hydraulic Tip Grizzly
Floor Storage Compartment
Flood Lighting
